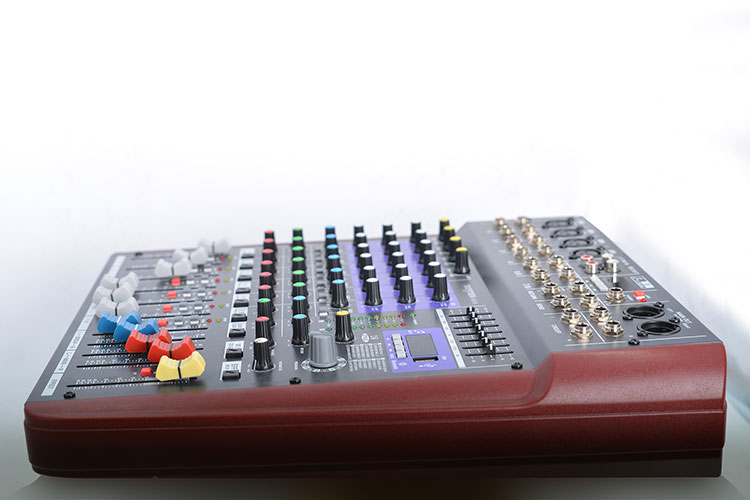

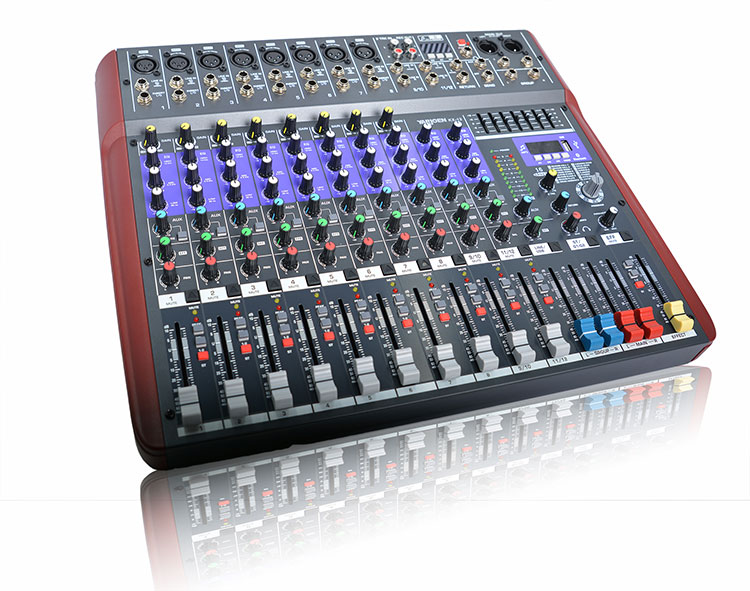

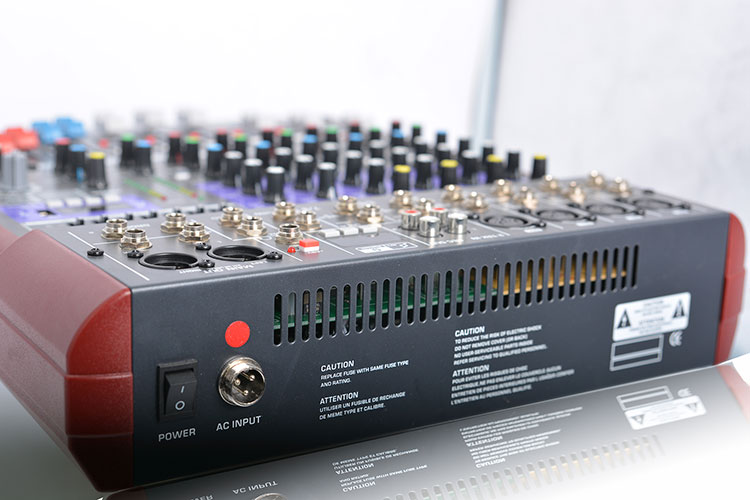

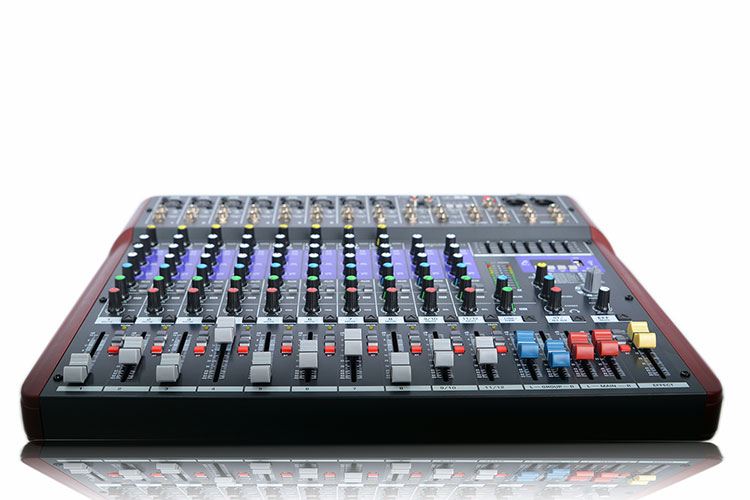

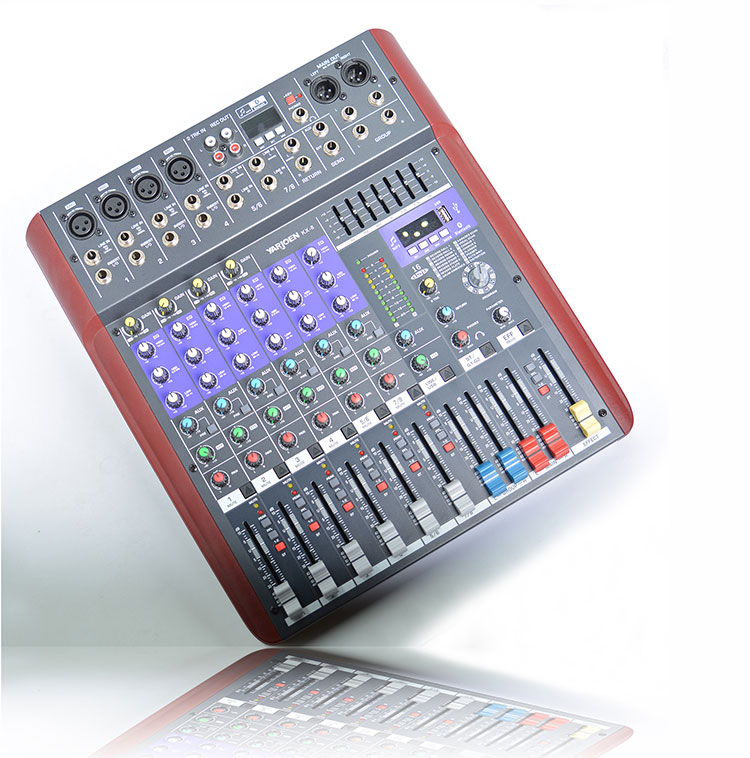

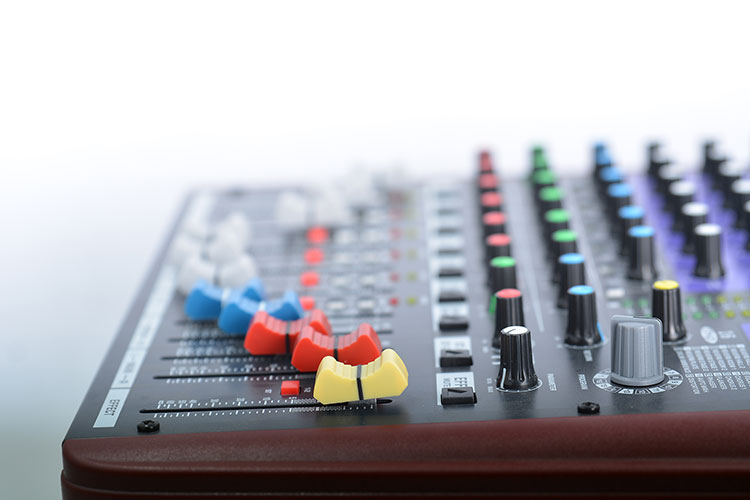

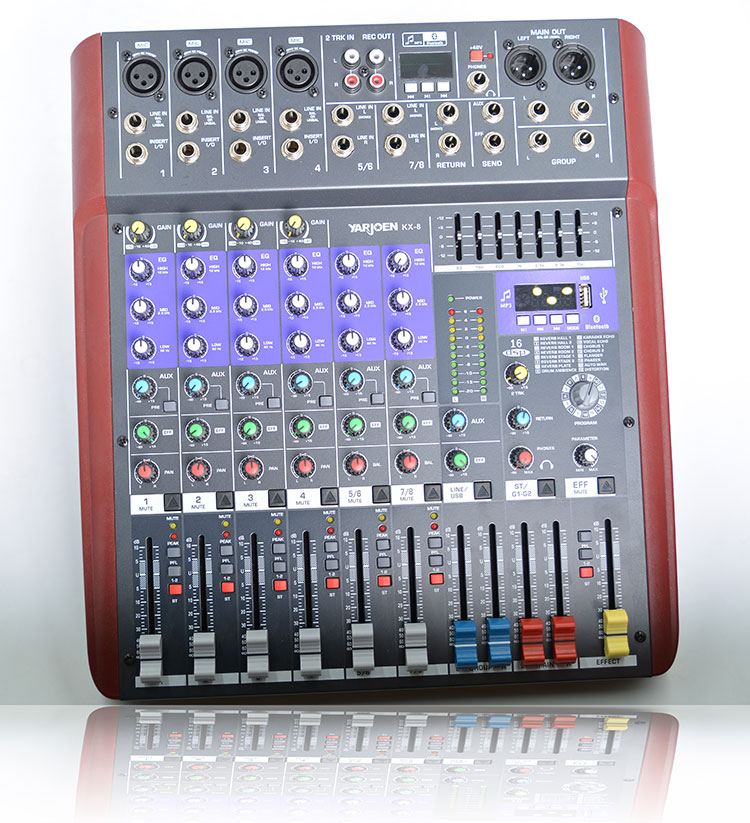

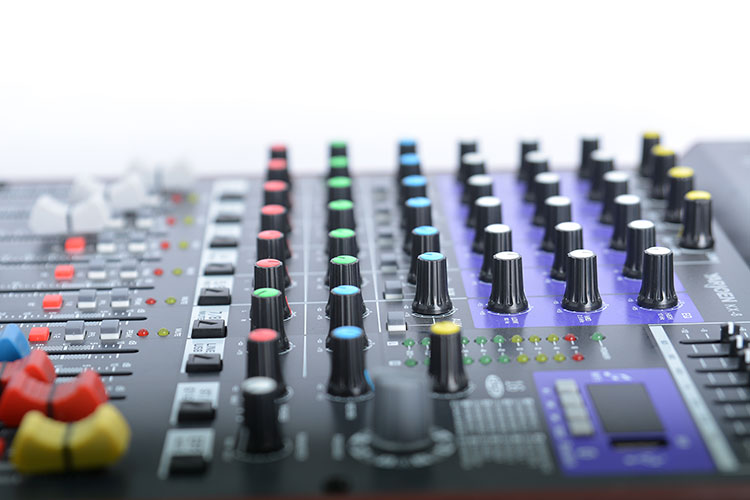

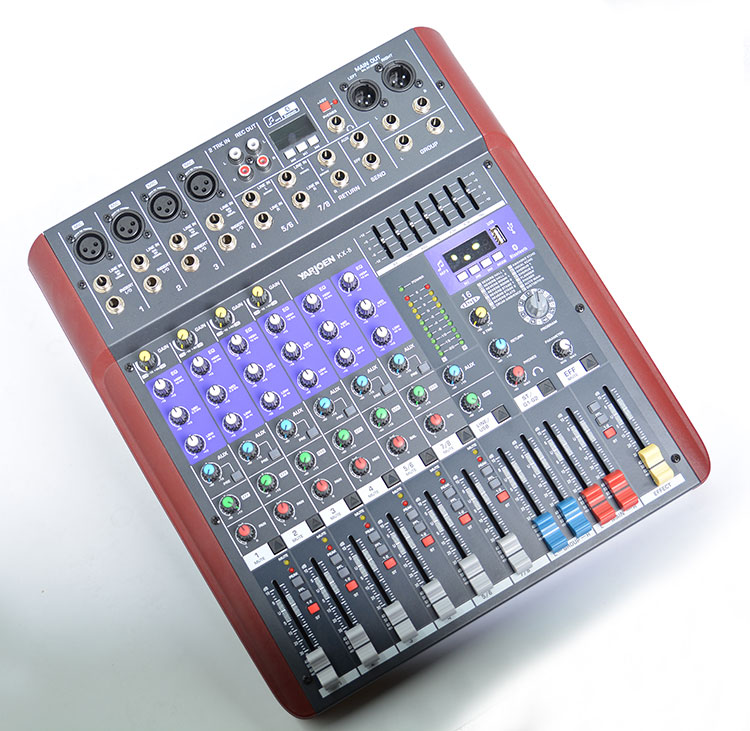

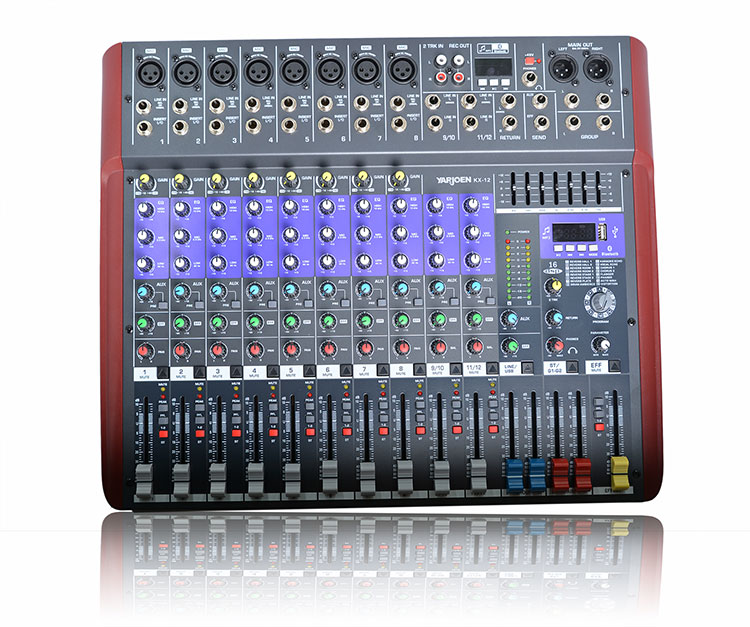

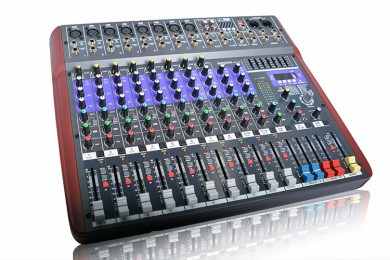

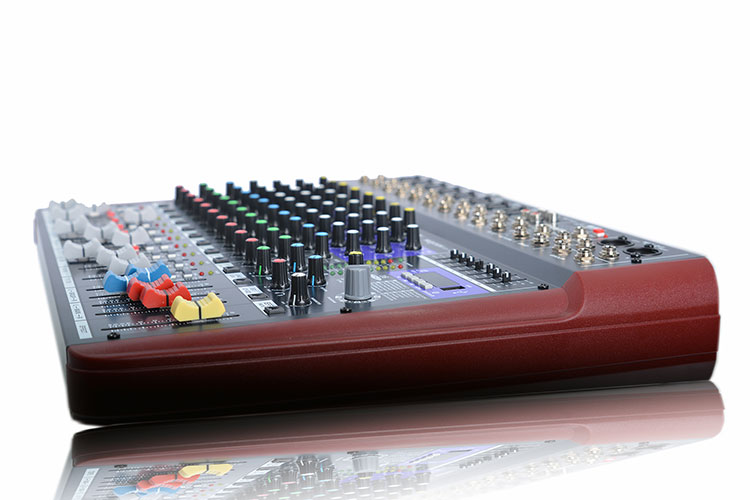

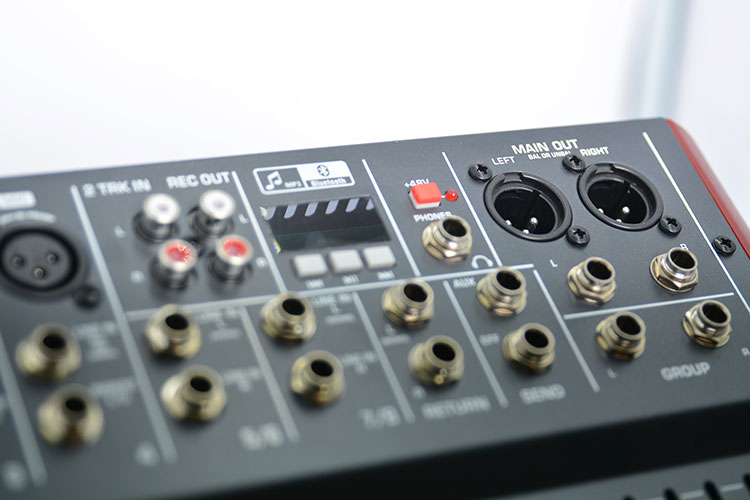

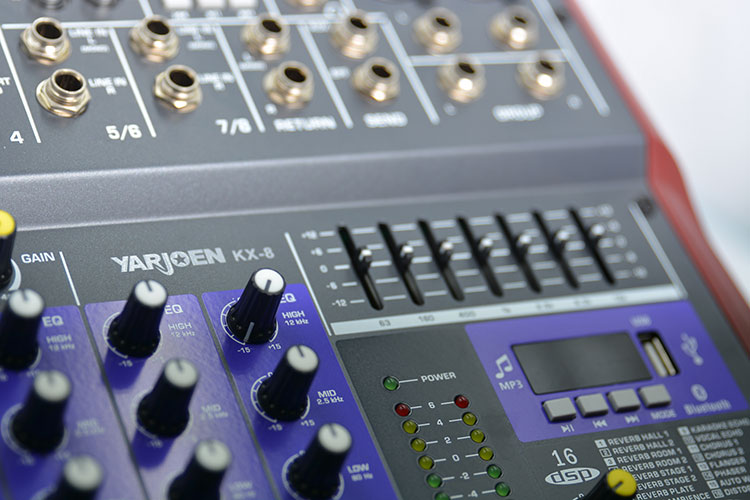

YARJOEN KX8、KX12、KX16调音台

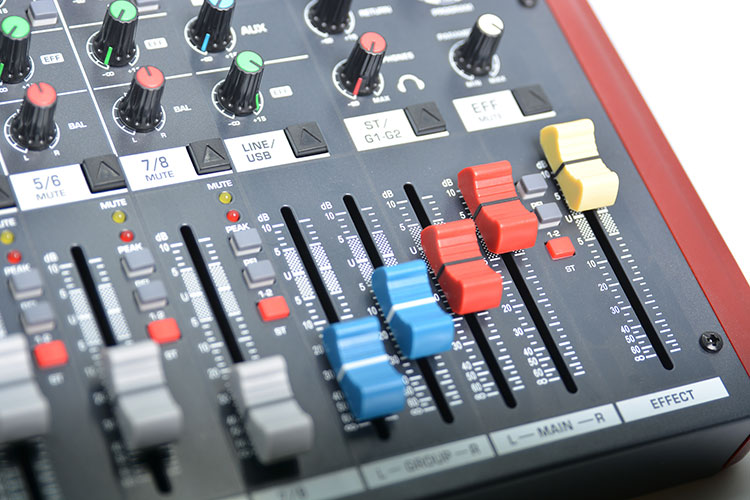

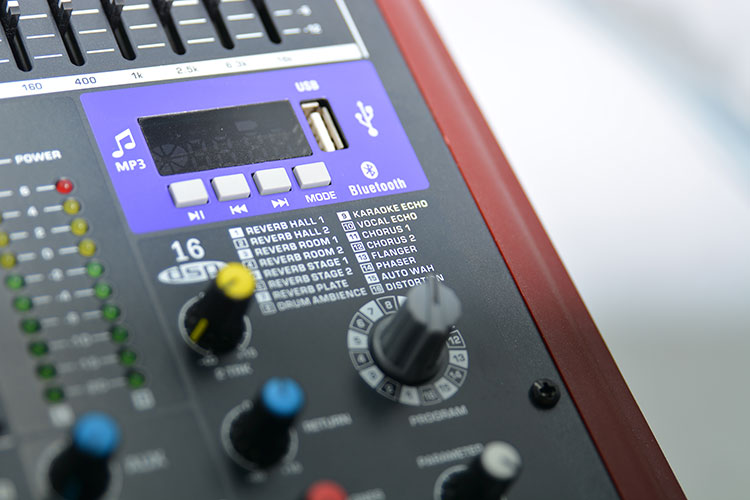

8\12\16路单声，通道三段均衡，一组辅助发送，一组效果发送，内置数字效果器，60mm精密推拉电位器。

MSM series has advantages as follow: simple structure, stable capability, and easy operation. MSM series is used in middle or

small conference room,broadcasting studio etc.

Specification（技术参数）：

▲ Maximum Output Level(最大输出电平): 19dBm (1KHz, THD=0.5%)

▲ Residual Noise(剩余噪声): -105dB

▲ S/N (信噪比): ≤ 80dB

▲ Equivalent Input Noise (等效噪声源输入电动势): -115dBm

▲ Headphone Power (耳机输出功率): 100mw (1KHz, THD=0.5%, 200Ω)

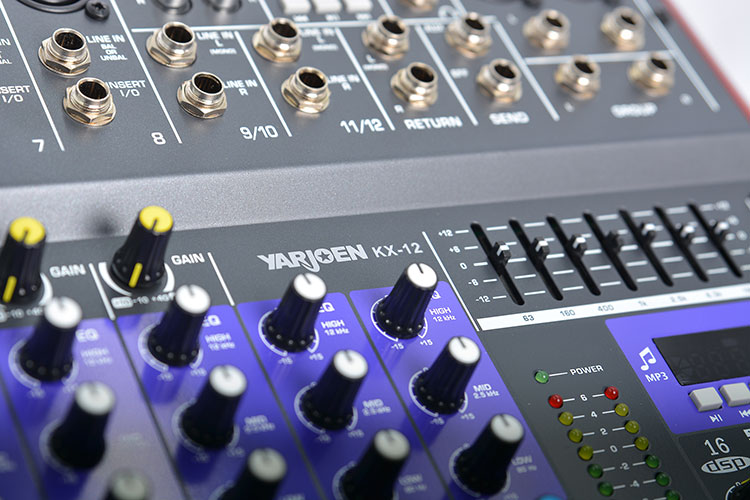

▲ Equalization(均衡): Low(低频): 80Hz ±15dB

                                  Mid(中频): 2.5KHz±15dB

                                  High(高频): 12KHz ±15dB

▲ Gain Control (增益控制): MONO(单声道)-60dB~-40dB

▲ Frequency Response(频率响应): 20Hz~20KHz(±3dB)

▲ THD+N(总谐波失真+噪声): ≤0.003% (1KHz, 0.775V)
